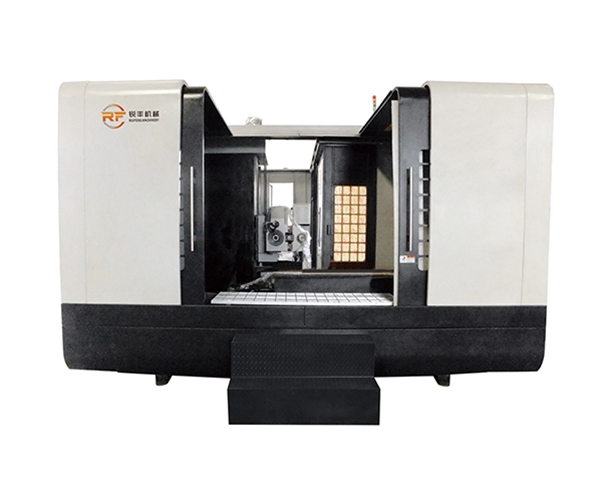

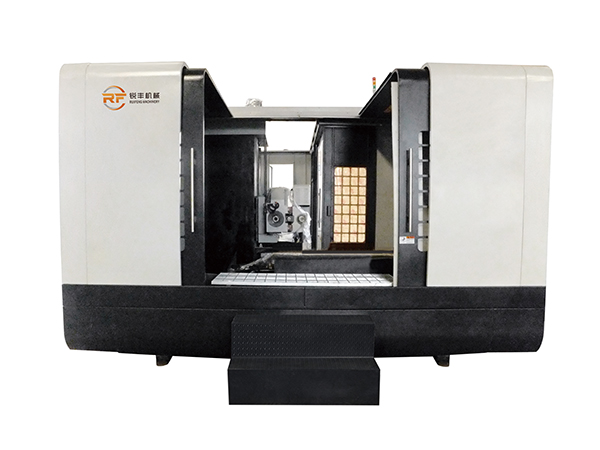

大孔径深孔钻（型号：RFDD1208-1200 RFDD1612-1500 RFDD2112-1500 )
一、 详情说明
二、产品中心
1、大孔径深孔钻简述
大孔径深孔钻是集喷吸钻,BTA钻，刀粒钻,枪钻于一体的深孔加工机床，钻孔直径可达Φ12Omm
2、应用领域
模具、液压、石油管道、核电等行业。
3、 主要特点
高效率，高精度，高光洁度的大孔加工,,光洁度可达(Ra0.4~0.8)。
四、 技术参数
以下是OFFICE 版本的文档（请下载使用）
| RFDD⼤孔径系列深孔钻 MACROPORE BTA SPRAY AND SBSORB DRILLING MACHINE | |||||
| 钻铣复合系列深孔钻 | 技术参数 TECHNICAL PARAMETERS | ||||
| 项⽬ | 单 位 | RFDD1208-1200 | RFDD1612-1500 | RFDD2112-1500 | |
| 加⼯⾏程Processing tracel | 钻孔直径Diameter of dirll hole | mm | Φ3-Φ35(枪钻/Gun drill)Φ18-Φ65(BTA/喷吸钻/Spray and absorbdrill) | ||
| X轴（⼯作台⾏程）X-axis (travel of work bench) | mm | 1200 | 1600 | 2100 | |
| Y轴（滑板⾏程）Y-axis (travel of sliding plate) | mm | 800 | 1200 | 1500 | |
| 枪钻最⼤孔深度Maximum_x005f_x005f_x005f_x0001_drill_x0001_depth of gun drill | mm | 1200 | 1500 | 1500 | |
| 喷吸钻最⼤钻孔深度 Maximum drill depth of spray and absorb drill | mm | 800 | 1000 | 1000 | |
| 加工速度Processing | 枪钻主轴最⾼转速Maximum rotating speed of gun drill main shaft | rpm | 4000 | 4000 | 4000 |
| ⼯作台X轴移动速度X-axis movement speed of work bench | m/min | 0-10000 | 0-10000 | 0-10000 | |
| 滑台Y轴移动速度Y-axis movement speed of slide guide way | m/min | 0-10000 | 0-10000 | 0-10000 | |
| 枪钻主轴进给速度Feeding speed of gun drill main shaft | m/min | 0-3000 | 0-3000 | 0-3000 | |
| 动⼒参数Dynamic parameter | X轴进给电机X-axis feeding motor | N.m | 22 | 30 | 30 |
| Y轴进给电机Y-axis feeding motor | N.m | 22 | 40 | 40 | |
| Z轴进给电机Z-axis feeding motor | N.m | 22 | 22 | 22 | |
| 钻削主轴电机Motor of drill stem main shaft | kW | 18.5/22 | 18.5/22 | 18.5/22 | |
| 机床总功率Total power of machine tool | kW | 54 | 60 | 60 | |
| 其他Other | 冷却液压⼒范围Pressure scope of cooling liquid | Mpa | 枪钻/Gun drill 2-11 喷吸钻 Spray and absorb drill 0.1-2 | ||
| 冷却液流量范围Pressure scope of cooling liquid | L/min | 枪钻/Gun drill 6-110 喷吸钻/Spray and absorb drill 40-165 | |||
| ⼯作台尺⼨Size of work bench | mm | 1300X1000 | 1700X1200 | 2200X1200 | |
| ⼯作台承重Load-bearing_x005f_x005f_x0001_ofworkbanch | T | 8 | 10 | 12 | |
| 机床外形尺⼨Externalsizeofmachinetool | mm | 6300X3700X3100 | 6600X4500X3600 | 6600X5500X3600 | |
| 机床总重量Total weight of machine tool | T | 13 | 21 | 24 | |
| 机床控制系统 | 新代/三菱/发那科SYNTEC/MITSUBISH/FANUC | ||||
| 本公司机床不断进⾏研发改良，如有更改规格恕不另⾏通知。本资料图⽚仅供参考，以实际产品样为准。 | |||||
| RFDD⼤孔径系列深孔钻 MACROPORE BTA SPRAY AND SBSORB DRILLING MACHINE | |||||
| 产品特点： | |||||
| 数控⽴卧深孔钻床是⼀种以深孔钻削为主的专⽤机床。 | |||||
| CNC vertical deep hole drilling machine is a special machine tool based on deep hole drilling | |||||

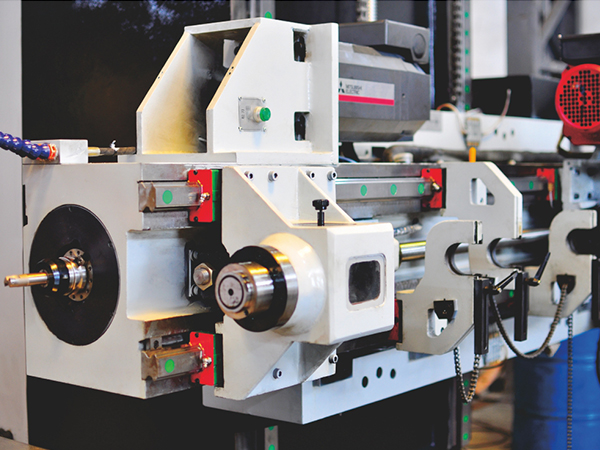

| 导 向 座 采 ⽤ 双 边 ⽀ 撑，加 ⼯ 时 两 边 均 匀 受 ⼒ 均 匀，精 度 保 持 性 好 。 | |||||
| The guide seat adopts bilateral support and the two sides are evenly stressed during processing and the precision is kept good. | |||||
| 采⽤枪钻加⼯，加⼯效率⾼，光洁度⾼。 | |||||
| Adopts gundrill for processing high efficiency and high fineness of hole | |||||
| ⼴泛应⽤于模具、汽⻋、内燃机、航空航天、家电、液压配件等⾏业 | |||||
| Widely used in molds, automobiles, internal combustion engines,aerospace, home appliances, hydraulic parts and other industries. | |||||
